Introduction
The CSFM-1000/1200 uses water based eco-friendly glue and BOPP plastic film as the material. After lamination, the paper has good adhesion and high transparency. It can dissolve the powder sprayed on the surface of the printed matter without snowflakes, making the surface of the paper bright, beautiful, and has the functions of anti wetting and anti fouling.
Can be used with full sheets and window sheets two functions.
| Main technical variables | ||
| Model | CSFM-1000 | CSFM-1200 |
| Maximum width | 950mm | 1150mm |
| Maximum speed | 0～50(m/min) | 0～50(m/min) |
| Motor power | 1.5(kw) | 1.5(kw) |
| Weight | 750kg | 800kg |
| Overall Dimensions | 2400×1500×1500mm | 2400×1700×1500mm |
| Power | 220V 50HZ | 220V 50HZ |

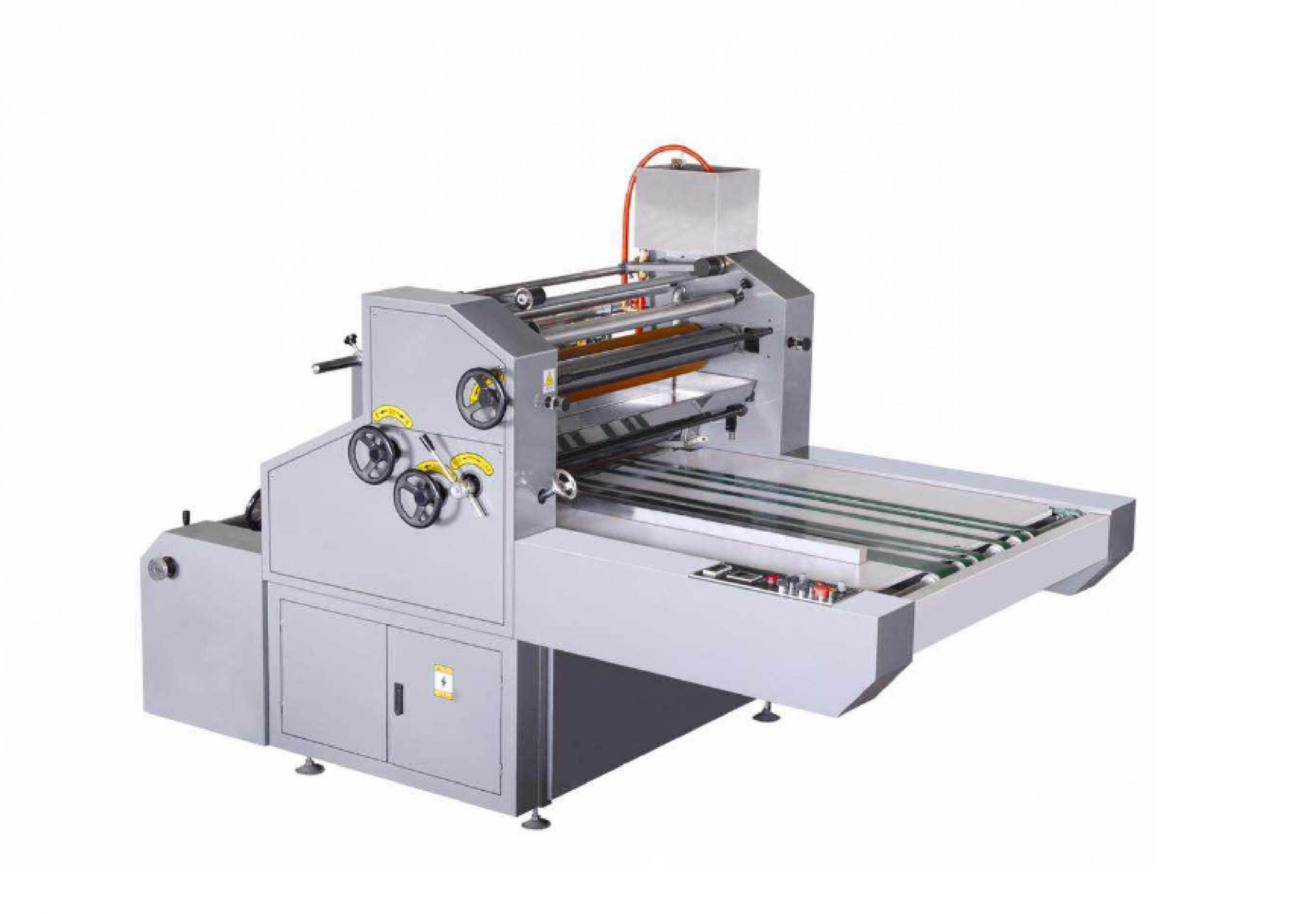

Actual Photo
Package
FAQ
1.What’s your Lead Time
Regularly within 30 days after payment of deposit.
2.Packaging?
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
3.How about After-Sales Service?
We provide 1 year warranty period. During the period, we supply the spare parts in free for replacement
in case of any quality problem. And you will enjoy life time technical support by our professional after-
sales team.
4.Do you have engineer available for installation, training and test to my factory?
Don’t worry, of course we have. All the machines have been adjusted and tested well in our workshop. But If you require, our engineer will come to your factory for technical support. You just pay for the VISA, round air tickets, salary 80 USD/day, provide food and accommodation upon final confirmation.
5.Any certifications？
Yes all the machines have passed ISO9001 and CE certification. And we have several patents about chain knife, heating roller and powder cleaning.
